Four Bays And Upwards with Upper Floors - WS01664
This is a building we have previously constructed which you may want to use as a starting point for your design. All our buildings are designed and manufactured to your individual specifications.
×
![]()
Details
A 3 bay oak framed garage with upper floor. The left hand bay on the ground floor is fully enclosed with a 2 light window at the front and 2 single doors on the right. On the left of this bay is an internal aisle. The other 2 bays are left completely open. The first floor has a 3 light window underneath the barn hip roof on the right and a mono pitch dormer with a 4 pane window.

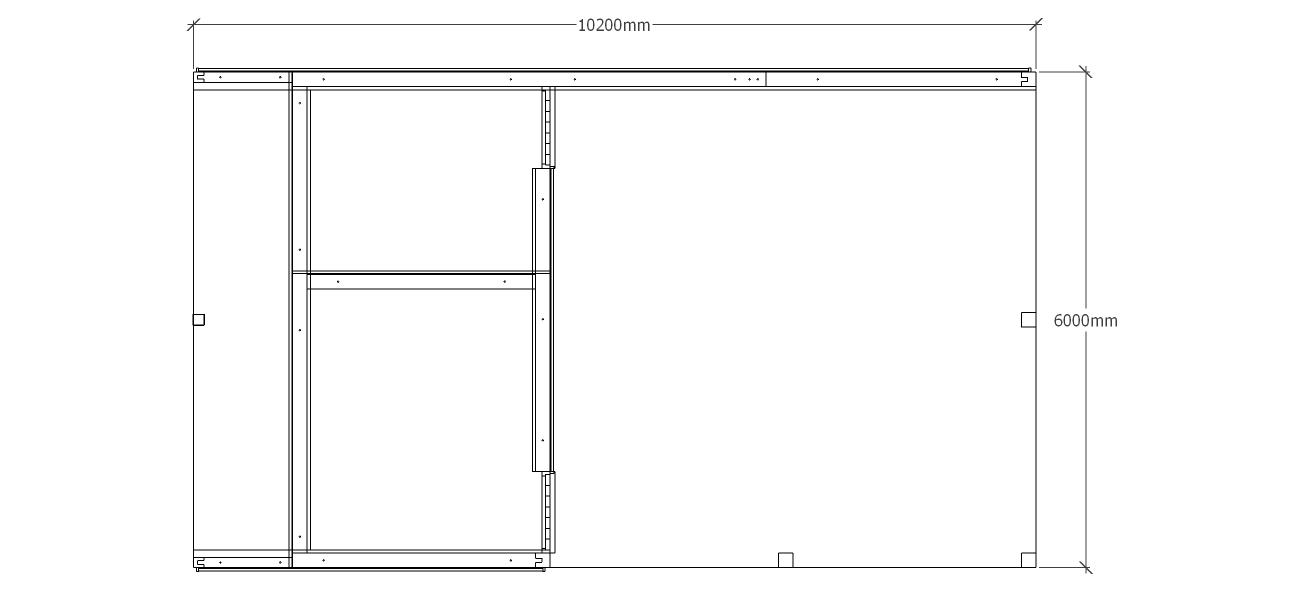

Dimensions
| G/F Area (sq m) | 61.2 |
| F/F Area (sq m) | 26.1 |
| Total Area (sq m) | 87.3 |
| Length (m) | 10.2 |
| Depth (m) | 6 |
| Ridge Height (m) | 5.525 |
| Roof Pitch (deg) | 45 |
| Number of Bays | 6 |
| Location | Belgium |
| Ridge Height (m) | Monopitch |
