Three Bay Oak Garages with Upper Floors - WS00189
This is a building we have previously constructed which you may want to use as a starting point for your design. All our buildings are designed and manufactured to your individual specifications.
×
![]()
Details

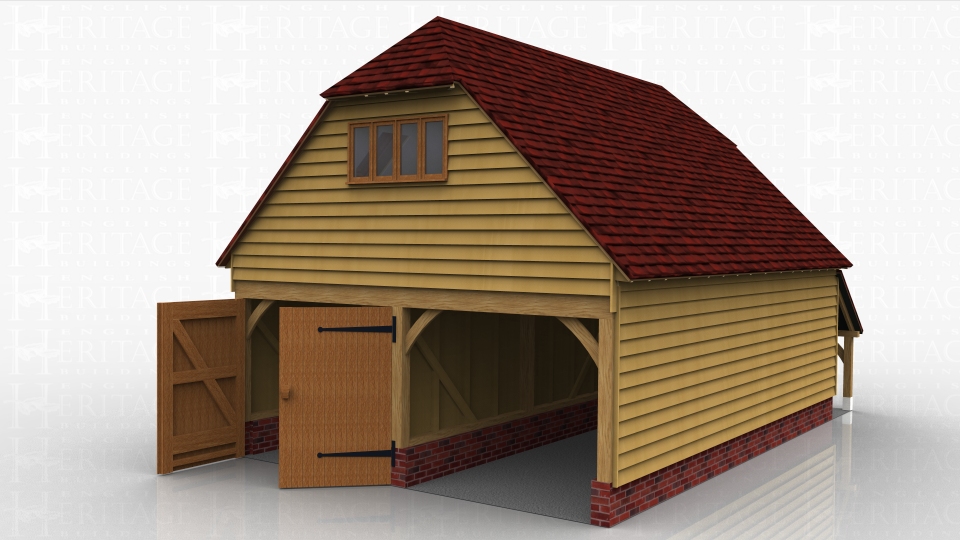

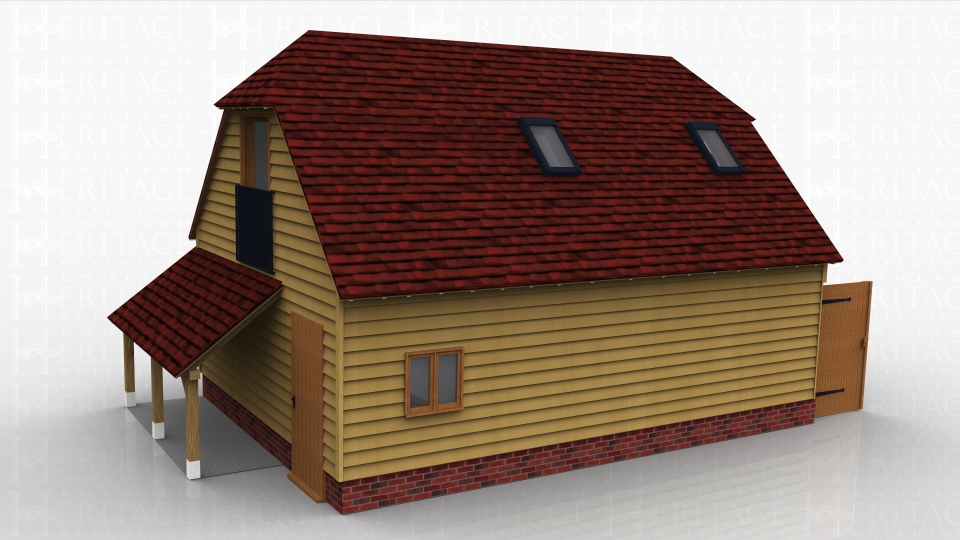

This two storey oak framed garage has three bays; two for parking which are accessed via two sets of garage doors to the right hand side, and one for storage which is accessed via a single door to the left. The left hand side of the building has an open logstore and a single window to the first floor. To the right first floor side there is a four pane window as well as the trimmings for two rooflights. The first floor is accessed by a hatch in the enclosed bay and is designed for storage.
Dimensions
| G/F Area (sq m) | 43.68 |
| F/F Area (sq m) | 28.08 |
| Total Area (sq m) | 71.76 |
| Length (m) | 9 |
| Depth (m) | 5.6 |
| Ridge Height (m) | 5.5 |
| Roof Pitch (deg) | 45 |
| Number of Bays | 3 |
| Location | East Sussex |
| Ridge Height (m) | Two Storey |
